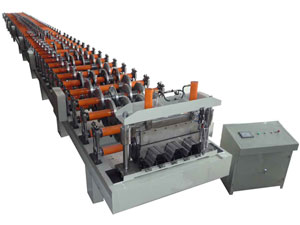

Deck Floor Roll Forming Machine

The deck floor roll forming machine consists of hydraulic decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system and electric system. The design which has embed buckle on the web plate provides excellent bonding between steel plate and concrete. This equipment from Changsheng Company has a better effective height and stronger resistance, because its plate is wholly covered by concrete. The steel plate made by this deck floor roll forming machine has property of superexcellent fireproof. Additionally, it has the advantages of quick and simple operation, longer service time and so on.

Deck Floor Roll Forming Machine

The deck floor roll forming machine is used to construct skyscraper, residential building and bridge.
The Chart of Process Flow:
decoiling→active feeding→roll forming→measuring length→cutting to length→putting product to stand
Technical Parameters:
1 Manual Inner Tight Decoiler
(1). coil inner diameter: 450mm-700mm
(2). max width of coiling: 1200mm
(3). max weight of loading: 6000kg
(4). hydraulic station power: 3kw
(5). motor power: 3kw
(6). oil cylinder inner diameter: 120mm
(7). working pressure: 10Mpa
2.Main Forming Machine
(1). number of forming steps: 22
(2). material of shaft: 45# steel adjustable treatment.Outer diameter: 80mm
(3). material of roller15 GCR bearing steel treatment HRC58-60
(4). main motor power5.5kw
(5). forming speed: 8-10m/min
(6). stand350# steel welding
(7). the plating chromium of roller surface 0.05mm
3. Hydraulic Cutter
(1). material of blade: Cr12 with quenched treatment 60-62
(2). cutting system: adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and then cuts)
4. Electrical System
The main computer (PLC): Tai Da DVP14ES
5. Hydraulic System
(1). Adopting advanced hydraulic system of TaiWan
(2). Power: 4KW
Automatic inner tight decoiler: 1set
Main forming machine: 1 set
Hydraulic system: 1 set
Electrical system: 1 set
Normal product stand: 3 set

Yingkou Changsheng Steel Structure Project Co.Ltd is a professional manufacturer and supplier of deck floor roll forming machine in China. Apart from deck floor roll forming machine like roof panel roll forming machine, glazed tile roll forming machine, etc. we also offer auxiliary equipment products like automatic tube bending machine, plate bending machine, etc; high pressure polyurethane insulation painting machine including low pressure polyurethane foam machine and high pressure polyurethane foam machine; k-span machine, like automatic building machine, ultimate building machine and arch style buildings forming machine. With good quality and affordable price, the products produced by our company has exported Germany, Holland, India, Indonesia, New Zealand, Syria, United Arab Emirates, Russia, Kuwait, South Africa, and Bangladesh. If you are interested in our products, please contact us for details.
