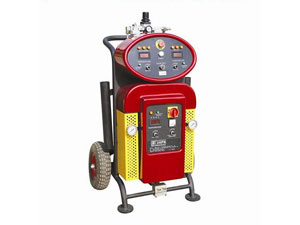

Low Pressure PU Foam Machine

1. The low pressure polyurethane foam machine, controlled by PLC, has the advantages of high accuracy, simple operation and convenient maintenance.
2. After finishing the pre-set first injection, the alarming relay will give alarms.
In order to have various thermal insulation purposes, this low pressure polyurethane foam machine can be used for continuously injection rigid or soft polyurethane foam.

Technical Specification:
1) Main pump motor power: 5.5Kw
2) Mixing motor power: 0.55kW
3) Hydraulic pump motor power: 2.2Kw

4) Auto glue filling motor power: 1.5Kw (two set for two tanks)
5) Flux: 5~30kg per minute
6) Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues

Low Pressure PU Foam Machine

7) PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
8) Equipped piston type counting pump: HJ30-50 (two), adjusting accuracy 0.05%.
9) Generating pressure: 8-10MPa (one 0.8 m3 air compressor is equipped by buyer)
10) Machine weight: about 800kg
11) Dimension: 1370mm x 1350mm x 2250mm

Yingkou Changsheng Steel Structure Project Co.Ltd is a professional manufacturer and supplier of low pressure polyurethane painting machine in China. Apart from low pressure polyurethane foam machine and high pressure polyurethane foam machine, we also offer EPS - rock wool sandwich panel machine like C purlin roll forming machine, Z purlin roll forming machine etc; auxiliary equipment products like automatic tube bending machine, plate bending machine etc; k-span machine, like automatic building machine, ultimate building machine and arch style buildings forming machine. With good quality and affordable price, the products produced by our company has exported Germany, Holland, India, Indonesia, New Zealand, Syria, United Arab Emirates, Russia, Kuwait, South Africa, and Bangladesh. If you are interested in our products, please contact us for details.
